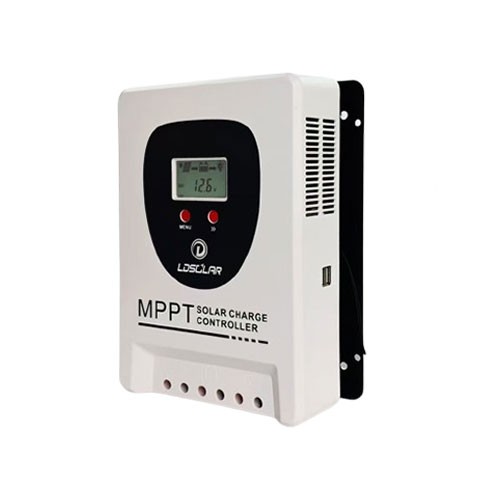

This compact wall-mounted MPPT solar charge controller adopts streamlined white casing design, specially optimized for distribution box installation scenarios. It covers 10A/20A/30A/40A/50A/60A full current range, supports automatic identification of 12V/24V battery systems, with optional 60V/100V maximum photovoltaic input voltage. Reserved external USB interface for temporary power supply, WIFI & Bluetooth modules are optional for mobile APP remote debugging and data viewing. Widely matched household distributed photovoltaic, off-grid energy storage, RV mobile power and monitoring power supply systems.
Compact Wall-mounted MPPT Regulator | 12V/24V Auto Voltage Identification
This compact wall-mounted MPPT solar charge controller adopts streamlined white casing design, specially optimized for distribution box installation scenarios. It covers 10A/20A/30A/40A/50A/60A full current range, supports automatic identification of 12V/24V battery systems, with optional 60V/100V maximum photovoltaic input voltage. Reserved external USB interface for temporary power supply, WIFI & Bluetooth modules are optional for mobile APP remote debugging and data viewing. Widely matched household distributed photovoltaic, off-grid energy storage, RV mobile power and monitoring power supply systems.
Slim white shell design, reserved wall fixing holes, perfectly embedded into distribution boxes, save indoor installation space, neat wiring layout.
Real-time capture solar panel maximum power point, conversion efficiency up to 99.7%, charging efficiency increased by 30% compared with PWM controllers.
Two versions of max PV input 60V & 100V optional, compatible with conventional series solar panels on the market, flexible system collocation.
Equipped with front USB interface, can charge mobile phones, small electronic devices directly without extra adapters.
WIFI/Bluetooth pluggable communication module, realize remote parameter modification, real-time data viewing and abnormal alarm push via mobile APP.
Overcharge, over-discharge, reverse connection, overheating, short-circuit multi-protection circuit, effectively protect batteries and photovoltaic modules from damage.
| Product Name | Wall-mounted MPPT Solar Charge Controller |
| Charging Current Options | 10A,20A,30A,40A,50A,60A |
| Adaptive System Voltage | Auto 12V / 24V |
| Max PV Input Voltage | Optional 60V / 100V |
| Charging Mode | MPPT Maximum Power Point Tracking |
| External Interface | Standard USB 5V output |
| Communication Mode | WIFI / Bluetooth Optional |
| Display | Mini LCD Digital Screen |
| Mounting Method | Wall Mount / Distribution Box Embedded Installation |
| Operating Temperature | -20℃ ~ +55℃ |
| Protection Mechanism | Overcharge, Over-discharge, Reverse Polarity, Overheat, Short-circuit Protection |
Installed inside household electric box, cooperate with roof solar panels to build simple household off-grid energy storage power supply system.
Small size saves caravan space, USB port supplies mobile devices, ideal choice for self-driving outdoor photovoltaic power supply.
Stable charging management for outdoor cameras, forest monitoring equipment in areas without mains power supply.
Match home energy storage batteries to realize peak shaving and valley filling, reduce daily grid electricity consumption cost.
Provide clean solar power for remote homestays, camps, mountain wooden houses without power grid coverage.
Used for convenience stores, street stalls to store solar energy and power lighting, small electrical appliances during power cuts.
This model adopts flat slim casing, designed specially for wall-mounted and electric box embedded installation, equipped with extra USB output function, which is the main difference from vertical large MPPT controllers.
The USB port outputs 5V voltage powered by the storage battery, it can charge mobile phones and Bluetooth devices normally when the solar panel stops charging at night.
Yes, we support separate selection of 60V or 100V photovoltaic maximum input versions according to your solar panel open-circuit voltage parameters.
WIFI and Bluetooth modules are optional accessories, the basic version does not include wireless modules, you can purchase modules separately if remote monitoring is needed.
It supports lithium iron phosphate batteries, lithium-ion batteries and lead-acid batteries. Switch the battery type mode on the LCD screen before use to match the corresponding charging curve.
