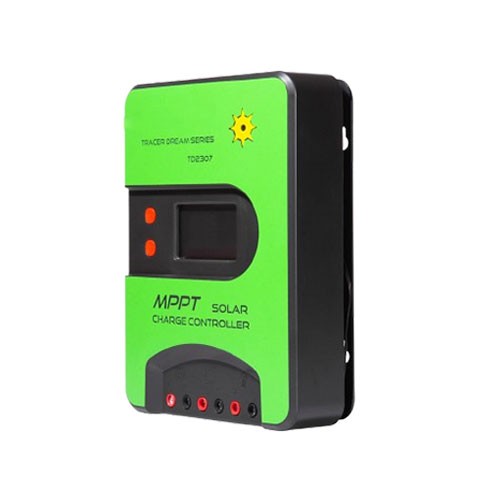

This MPPT solar charge controller adopts advanced maximum power point tracking technology, greatly improving solar energy utilization efficiency. It supports automatic identification of 12V/24V battery systems, with multiple current specifications of 10A/15A/20A/30A/40A/60A to choose from. It supports high-voltage photovoltaic panel input, and optional WIFI & Bluetooth communication modules for mobile phone remote viewing and parameter setting, widely matched with off-grid solar power generation systems for homes, villas, cabins and small commercial photovoltaic energy storage systems.
Smart Solar Panel Regulator | 12V/24V Automatic Identification System
This MPPT solar charge controller adopts advanced maximum power point tracking technology, greatly improving solar energy utilization efficiency. It supports automatic identification of 12V/24V battery systems, with multiple current specifications of 10A/15A/20A/30A/40A/60A to choose from. It supports high-voltage photovoltaic panel input, and optional WIFI & Bluetooth communication modules for mobile phone remote viewing and parameter setting, widely matched with off-grid solar power generation systems for homes, villas, cabins and small commercial photovoltaic energy storage systems.
Real-time tracking of the maximum power point of solar panels, conversion efficiency up to 99.9%, effectively increase solar charging efficiency by 25%-40% compared with ordinary PWM controllers.
Support 60V/75V/100V/120V maximum photovoltaic input voltage, compatible with most conventional solar panels on the market, flexible collocation scheme.
Intelligent automatic identification of lead-acid, lithium iron phosphate battery voltage level, no manual dial adjustment, plug and install to use.
Equipped with wireless communication function, connect mobile APP to check charging data, battery status, modify charging parameters remotely, convenient intelligent management.
Built-in overcharge, overdischarge, overcurrent, short circuit, reverse connection, overheating protection functions, effectively protect batteries and solar panels from damage.
LCD real-time display voltage, current, power and SOC data, small body easy wall-mounted installation, save installation space of power distribution box.
| Product Name | MPPT Solar Charge Controller |
| Charging Current Option | 10A,15A,20A,30A,40A,60A |
| System Voltage | Auto 12V / 24V |
| Max PV Input Voltage | 60V / 75V / 100V / 120V optional |
| Tracking Mode | MPPT Maximum Power Point Tracking |
| Communication Mode | Optional WIFI / Bluetooth |
| Supported Battery Types | Lead-acid battery, Lithium iron phosphate battery |
| Display Mode | LCD Digital Display |
| Installation Method | Wall-mounted |
| Working Temperature | -20℃ ~ +55℃ |
| Protection Functions | Overcharge / Over-discharge / Over-current / Short-circuit / Reverse connection / Overheat protection |
Match household photovoltaic panels and energy storage batteries to build independent off-grid power supply system for rural houses, mountain villas.
Used for mountain wooden houses, camps, pastoral homestays, collect solar energy during daytime to supply lighting, electrical equipment at night.
Convenience stores, small shops use photovoltaic power storage to reduce grid electricity consumption and save daily electricity costs.
Provide stable power supply for outdoor monitoring cameras, communication signal equipment, suitable for unattended remote areas.
Greenhouse lighting, ventilation equipment powered by solar energy, realize agricultural energy saving and photovoltaic power storage.
Installed on RVs and yachts to cooperate with roof solar panels, realize self-sufficient power consumption during travel.
MPPT can track the maximum power of solar panels in real time with higher charging efficiency, while PWM only performs simple switch charging; MPPT efficiency is 25%~40% higher than PWM under the same sunlight condition.
Yes, it supports lithium iron phosphate batteries and lead-acid batteries. You only need to switch the battery type mode on the display screen to match different batteries normally.
WIFI and Bluetooth communication modules are optional accessories. You can choose to install wireless modules according to your needs for remote monitoring, or use the basic wired version directly.
It has built-in anti-reverse connection protection circuit. Even if the positive and negative poles of the solar panel or battery are reversely connected accidentally, the controller will not be burned, just rewire correctly.
Multiple controllers can be connected in parallel to charge the same battery pack to expand the total charging power, which is commonly used in large-capacity photovoltaic energy storage systems.
