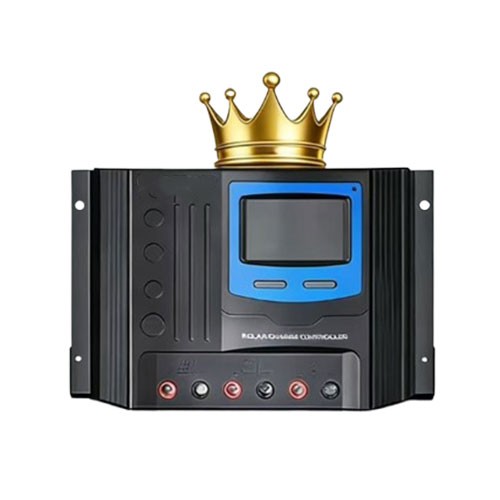

This PWM solar charge controller is a cost-effective photovoltaic charging and discharging management device, supporting 10A to 60A charge current and 12V/24V/48V system voltage options. It is compatible with multiple battery types such as LiFePO4, lithium-ion, sealed lead-acid, gel and flooded batteries. With free APP monitoring function, users can check solar charging status, battery voltage and load operation data remotely. It is widely used in household solar lighting, off-grid power systems, small energy storage systems, RVs, yachts and solar street light projects.
10A~60A Solar Panel Regulator | 12V/24V/48V System Voltage
This PWM solar charge controller is a cost-effective photovoltaic charging and discharging management device, supporting 10A to 60A charge current and 12V/24V/48V system voltage options. It is compatible with multiple battery types such as LiFePO4, lithium-ion, sealed lead-acid, gel and flooded batteries. With free APP monitoring function, users can check solar charging status, battery voltage and load operation data remotely. It is widely used in household solar lighting, off-grid power systems, small energy storage systems, RVs, yachts and solar street light projects.
Support 10A, 15A, 20A, 30A, 40A, 50A, 60A multiple current specifications, suitable for different solar panel power and battery capacity configurations.
Compatible with 12V, 24V and 48V battery systems, flexible to match small, medium and medium-large off-grid solar power systems.
Support LiFePO4, lithium-ion, sealed lead-acid, gel and flooded batteries, suitable for different energy storage battery solutions.
Support mobile APP remote monitoring, check real-time charging current, battery voltage, load status and fault information conveniently.
Equipped with digital LCD screen and operation keys, clearly display system parameters, working status and protection information.
Built-in overcharge, overdischarge, overcurrent, short circuit, reverse connection and overheat protection functions to improve system safety.
| Product Name | PWM Solar Charge Controller |
| Charge Current | 10A / 15A / 20A / 30A / 40A / 50A / 60A |
| System Voltage | 12V / 24V / 48V |
| Control Mode | PWM Charge Management |
| Compatible Battery Types | LiFePO4 / Lithium-ion / Sealed Lead-acid / Gel / Flooded |
| Display Mode | LCD Digital Display |
| Monitoring Function | Free APP Remote Monitoring |
| Load Control Modes | Light Control / Time Control / Manual Control |
| Working Temperature | -20℃ ~ +55℃ |
| Protection Functions | Overcharge / Overdischarge / Overcurrent / Short Circuit / Reverse Connection / Overheat Protection |
| Installation Method | Wall-mounted |
Suitable for home solar lighting and small power supply, storing solar energy during the day and supplying power for lighting and small loads at night.
Used in remote areas without grid power, such as mountain houses, islands and pastoral areas, to build independent solar power supply systems.
Support light control and time control functions, widely used in solar street lights, garden lights, community lighting and landscape lighting projects.
Installed in RVs, yachts and mobile cabins, cooperating with solar panels to provide basic power supply for travel and outdoor living.
Suitable for small shops, warehouses and stalls, matching solar panels and batteries to reduce dependence on grid electricity.
Used in farms, greenhouses and pastures, supporting solar power supply for lighting, fans, monitoring and small agricultural equipment.
PWM solar charge controller manages battery charging through pulse width modulation, effectively preventing overcharging and extending battery service life.
It supports LiFePO4, lithium-ion, sealed lead-acid, gel and flooded batteries, and can be widely used in different solar energy storage systems.
The suitable current should be selected according to solar panel power, battery voltage and battery capacity. Common specifications include 10A, 20A, 30A, 40A and 60A.
Yes, it supports free APP monitoring function, which can check real-time charging data, battery voltage, load status and fault information.
Yes, it supports light control, time control and manual control modes, very suitable for solar street lights, garden lights and outdoor lighting projects.
