HZR series 48V rack-mounted lithium iron phosphate battery adopts standard cabinet rack-mounted design, perfectly matching home & commercial energy storage cabinets. Built-in high-precision BMS management system, optional multi-protocol communication modules. Actual capacity exceeds nominal capacity by 5%, with more than 20% electrical design redundancy. Compatible with mainstream hybrid inverters globally, widely used in household energy storage, commercial backup power, off-grid power stations and other energy storage scenarios.

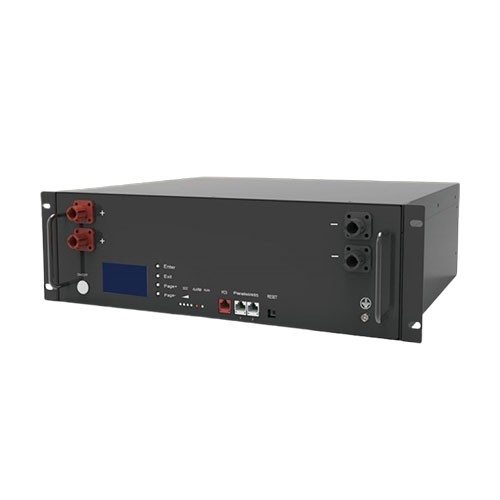

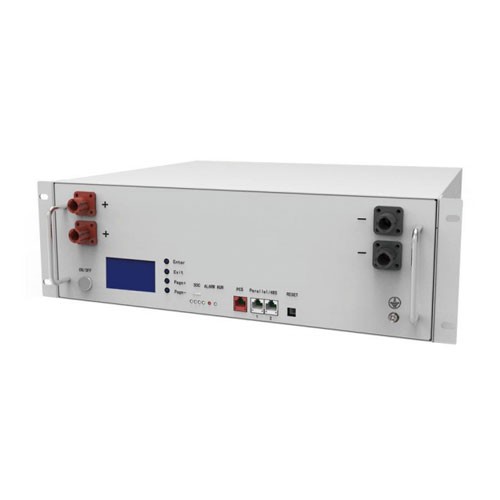

HZR Series 48V Rack-Mount LiFePO4 Energy Storage Battery
Measured capacity＞Nominal capacity+5%
HZR series 48V rack-mounted lithium iron phosphate battery adopts standard cabinet rack-mounted design, perfectly matching home & commercial energy storage cabinets. Built-in high-precision BMS management system, optional multi-protocol communication modules. Actual capacity exceeds nominal capacity by 5%, with more than 20% electrical design redundancy. Compatible with mainstream hybrid inverters globally, widely used in household energy storage, commercial backup power, off-grid power stations and other energy storage scenarios.
It is compatible with most inverter brands on the market.
Battery complies with UN38.3/MSDS/CE international standards.
Higher energy utilization rate, longer runtime / power supply duration, improved system economy, suitable for high-load scenarios.
A two-level overcurrent protection system consisting of a Battery Management System (BMS) and circuit breakers.
≥4000~6000 cycles at 25°C, long design life over 10 years, stable long-term operation.
Supports RS485 / CAN / Bluetooth (optional), convenient for real-time monitoring and system linkage.
| MODULE | 48V100AH | 48V200AH | 48V280AH | 48V314AH |
| Battery parameters | ||||
| Nominal Energy (WH) | 4800 | 9600 | 13440 | 15072 |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Capacity (AH) | 100 | 200 | 280 | 314 |
| Usable Energy (WH) | 4320 | 8460 | 12096 | 13564.8 |
| Battery Pack Model | HZR-100-15S | HZR-200-15S | HZR-280-15S | HZR-314-15S |
| Cycle Life | ≥4000@25℃ | ≥4000@25℃ | ≥6000@25℃ | ≥6000@25℃ |
| C-Rate | 0.5C | |||
| Cooling Method | Air Cooling | |||
| Communication | RS485/CAN/Bluetooth (Optional) | |||
| Design Life | 10 years+ | |||
| Electrical Design Redundancy | > 20 % | |||
| Charge/Discharge Standard | ||||
| Discharge Cut-off Voltage (V) | 42.75 | 42.75 | 42.75 | 42.75 |
| Charging Voltage (V) | 53.25 | 53.25 | 53.25 | 53.25 |
| Recommended Charge/Discharge Current (A) | 50 | 100 | 140 | 157 |
| Max. Charge/Discharge Current (A) | 100 (3S) | 200 (3S) | 200 (3S) | 200 (3S) |
| Operating Conditions | ||||
| Working Temperature | 0-40℃ | |||
| Storage Temperature | -20~70℃ | |||
| Humidity | 15%~80% | |||
| Outer Dimension & Certification | ||||
| Dimensions (W*D*H) mm | 496*400*145 | 496*720*145 | 437*875*239 | 437*875*239 |
| Weight (KG) | 48 | 94 | 110 | 110 |
| Certifications | CE / UN38.3 / MSDS | |||
*Product dimensions and specifications are subject to change without notice. Please refer to the latest physical product for final details.
Match off-grid solar hybrid inverters for residential self-consumption and daily power supply.
Provide uninterrupted power supply for household appliances during grid power outages.
Off-grid power solution for mountain villas, vacation houses without public grid access.
Supply power for water pumps, monitoring equipment and agricultural facilities on farms.
Emergency backup power for shops, offices and small business premises.
Support solar power storage for large recreational vehicles, fishing boats and yachts.
This battery is widely compatible with most mainstream brands of solar hybrid inverters on the market. You can send your inverter model to our sales team for compatibility confirmation.
Yes. We support optional RS485, CAN and Bluetooth communication modules to realize real-time battery data monitoring.
The battery supports 90% DOD, high energy utilization, effectively extend usable power duration.
Bulk orders support customized logo, outer packaging and communication parameters according to customer requirements.
Our batteries pass CE, UN38.3, MSDS certification, meet requirements for sea and air transportation.
Standard lead time is 7~15 working days after deposit confirmation. The exact time depends on order quantity.
