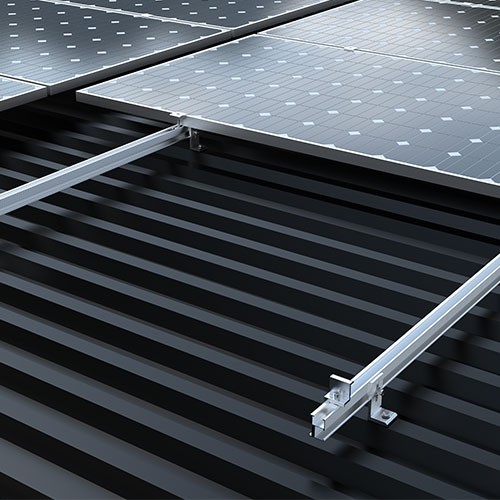

This solar mounting bracket system is specially designed for color steel tile / corrugated metal rooftop photovoltaic projects. Constructed with aerospace-grade aluminum rails + stainless steel fixtures, features non-penetrating & penetrating dual installation options. Quick assembly design shortens construction period greatly, perfectly match household rooftop PV, factory warehouse metal roof solar power station projects. Stable structure, anti-rust & wind-resistant, long service life over 25 years.
Standing Seam Metal Roof PV Mount Racks | Aluminum Alloy Solar Support Structure
This solar mounting bracket system is specially designed for color steel tile / corrugated metal rooftop photovoltaic projects. Constructed with aerospace-grade aluminum rails + stainless steel fixtures, features non-penetrating & penetrating dual installation options. Quick assembly design shortens construction period greatly, perfectly match household rooftop PV, factory warehouse metal roof solar power station projects. Stable structure, anti-rust & wind-resistant, long service life over 25 years.
Custom-designed for color steel tile & standing seam metal roof, avoids roof deformation and water leakage risks during installation.
Main rail: extruded aluminum alloy; fasteners & hooks adopt SUS304 stainless steel, anti-corrosion, anti-rust, service life synchronizes with solar panels.

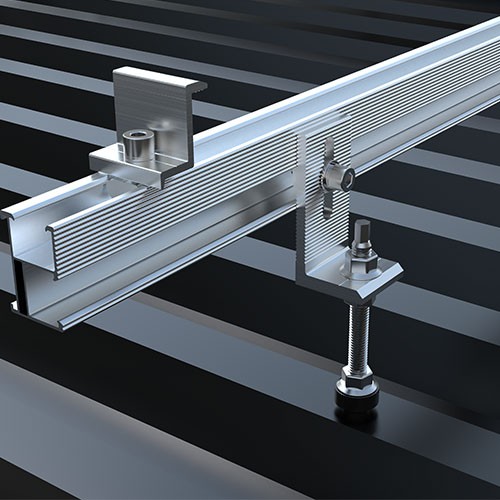

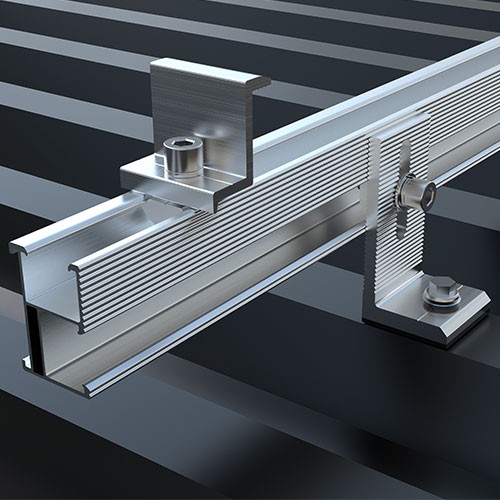

Support penetrating L-foot installation & non-penetration clamp installation, satisfy different roof waterproof requirements.
Modular splicing structure, no complex welding required, greatly reduce on-site installation time and labor cost.
Mechanically calculated structure, pass wind load & snow load test, adapt coastal windy areas, northern snow regions safely.
Waterproof gaskets & backing plates equipped for penetrating installation parts, effectively prevent roof water seepage.
| Product Name | Metal Roof Solar Mounting Bracket System |
| Main Rail Material | 6063-T5 Aluminum Alloy, Anodized Treatment |
| Fixture Material | SUS304 Stainless Steel |
| Applicable Roof Type | Corrugated Color Steel Tile / Standing Seam Metal Roof |
| Mounting Style | L-foot Penetrating / Seam Clamp Non-penetrating |
| Adaptable PV Module | All conventional monocrystalline & polycrystalline solar panels |
| Max Wind Resistance | 60m/s |
| Service Lifespan | ≥25 Years |
| Surface Treatment | Hard Anodizing / Hot-dip Galvanized |
| Certifications | CE, ISO9001, TUV Certified |
Install solar panels on factory metal rooftops for self-generation self-consumption, reduce factory electricity expenditure greatly.
Lightweight structure does not increase roof load, ideal for home distributed photovoltaic power generation system.
Large-area flat metal roof matching solution, build large-scale rooftop photovoltaic power plants efficiently.
Non-penetration installation protects roof waterproof layer, suitable for shopping malls, supermarkets commercial photovoltaic projects.
Stainless steel accessories resist salt spray corrosion, stable structure adapts coastal strong wind climate environment.
Match agricultural greenhouses color steel roof to build complementary agriculture & photovoltaic power station.
Each L-foot screw is equipped with EPDM waterproof gasket and backing plate, tightly seal the drill hole, standard construction will not cause water leakage problems.
Yes, equipped with special seam clamps, clip on the standing seam position completely non-penetrating installation, fully protect roof waterproof layer.
The main beam adopts 6063-T5 aviation aluminum alloy with anodized surface treatment, lightweight, high strength and anti-corrosion.
Universal design, compatible all mainstream size photovoltaic modules on the market, adjustable middle clamps & end clamps adapt different panel widths.
Whole set lifespan reaches 25 years, consistent with the service life of solar panels, no maintenance required in daily use.
